  • ftht60

GTKC48

3 Star Standard Builder Series

  • Technology :

    Inverter

  • Star Rating :

  • Capacity kW :

    4.8

  • Compressor Warranty :

    10 Yrs

  • PCB Warranty :

    5 Yrs

Discover cooling excellence with the GTKC48 - 3 Star Standard Series. With features like DNNS Self Heal Coating, Dew Clean Technology & Hepta Sense technology this inverter AC delivers unmatched reliability and convenience.

Salient Features

10 Years Warranty on Compressor

Enjoy long term assurance with 10 Years of peaceful cooling at your house. Daikin provides you tension-free comfort for a decade with a warranty on your air conditioning system's compressor.

5 Years Warranty On PCB

Want additional peace of mind? With Daikin's 5 year warranty on PCB, make your experience more peaceful alongside extra assurance on the maintenance cost and enjoy smooth cooling of your AC in your home.

Backlit Remote Controller

Remote control with a back light feature helps you to easily switch temperatures during dark or night. The backlight in remote control lets you change or check your features even in dark, improving your overall experience.

Coanda Airflow

Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling even in corners of the room by streaming cool air upwards along the ceiling, avoiding furniture or obstructions.

Cools upto 52º C

Unlike most regular air conditioners that are designed to deliver cooling at 35ºC, Daikin air conditioners are designed to perform at extreme ambient conditions as high as 52ºC. This makes them the ideal choice for dry and tropical countries.

Dew Clean Technology#

Daikin’s Dew Clean Technology auto-cleans the indoor heat exchanger unit, getting rid of bacteria, moulds and other unwanted particles. It ensures odour-free, fresh, consistent airflow at all times.

#Dew Clean Technology is available in cooling only mode.

DNNS Self Heal

Every Daikin Room AC’s Indoor Unit (U-bend side) is coated with advanced anti-corrosive coating active agent DNNS (Di-Nonyl Nephthalene Sulfonic Acid). The coating has Self Healing properties that activates upon chipping, scratches due to environmental or chemical pollution.

Econo Mode

Set the limit for power consumption with Daikin's ECONO mode feature. This function enables efficient operation by limiting the maximum power consumption. Taking one step towards Daikin's future innovation.

Hepta Sense

Daikin Swing Inverter ACs has 7 Sensors located on IDU and ODU. Each of these sensors has role to play in the working of Air conditioner that improves overall performance, provide comfort to users and help to increase durability and life of the AC.

Patented Swing Compressor

Daikin Air conditioners come with a Patented Swing Compressor which decreases friction and vibration. This helps in a smooth rotation of the swing compressor which provides a quiet and efficient operation.

Power Chill Operation

Cool down your home at a fast rate. Daikin's Power Chill operation cools down 20% faster as compared to the normal mode. It ensures your room temperature drops rapidly for immediate relief from the hot temperature outside.

Power-Airflow Dual Flaps

The Power-Airflow Dual Flaps along with the Crossflow Evaporator fans ensure even distribution of cool air in both small and large spaces, making sure you are comfortable at all times.

Self-Diagnosis

The machine auto detects the error and shows the related code on the remote screen. Now you can easily self diagnose the error and report it to your Daikin authorised service centre for a quick resolution.

Stabilizer Inside

No need to worry about voltage fluctuation. Daikin's Stabilizer Inside operation regulates voltage across a wide range of fluctuation (130V~285V) and helps ensuring smooth operations during voltage fluctuations.

Triple Display

The Triple Display feature shows 3 key optimum running features on your display panel: the percentage of power consumed at any given time, the set temperature of your room, and error codes, if any. This ensures the well-being of your system.

Explore All Features

Specification

Model nameIndoor unit (IDU) GTKC48UV16W/W3*
Outdoor unit (ODU)RKCG48UV16W/W3*

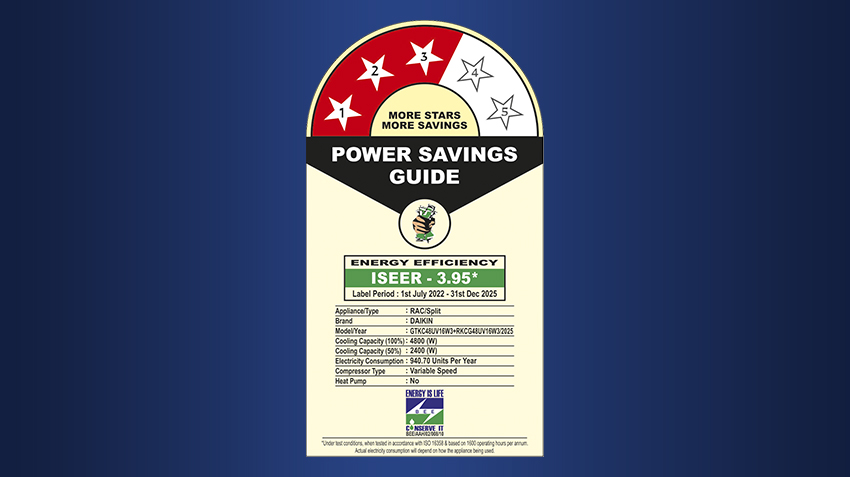

Star Rating* 3 Star
Rated Power supplyPhase /Frequency/Voltage1φ 50Hz 230V
 (220-240V)
Power Supply Intake Outdoor unit
Rated Cooling Capacity Full/Half (min.～max.)kW4.8/2.4 (1.75~5)
Rated Cooling Capacity Full/Half (min.～max.)Btu/h16400/8550 (5970~17060)
Cooling Capacity @ 43 Deg °C 100%
Rated Power Consumption Full/Half (min.～max.)CoolingW1700/518 (395~1750)
Rated Annual Power ConsumptionkWh940.77
Rated ISEERWh/Wh3.95
Voltage Range (Stabilizer Inside)CoolingV130-285
Operating CurrentCoolingA7.54

Indoor unit (IDU)

Panel Colour White
IDU Dimension (HxWxD)mm298 x 800 x 229
Package Dimension (HxWxD)375 x 895 x 325
IDU Net Weight (Gross Weight)kg9.5 (12.5)
Airflow RateCoolingFeet3/min (cfm)540
m3/min (cmm)15.3
Air ThrowFeet52
Operation Sound H/MH/M/ML/L/SLCoolingdBA48/46/43/41/38/32

Outdoor unit (ODU)

ODU Dimension (HxWxD)mm595 x 845 x 300
Package Dimension (HxWxD)680 x 1035 x 410
ODU Net Weight (Gross Weight)kg29(36)
Compressor Type Swing Compressor
Refrigerant R-32
Breaker sizeA20
Piping lengthCharge-Lessm10
Max Length20
Max. Height16
Piping ConnectionGas / Liquidmm (Inch)Φ12.7 / φ6.4(1/2”/1/4”)
Operating Ambient Temperature RangeCooling (Min-Max)°C DB20~52
Measurement conditions:
cooling

1. Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.

sound

2. Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

**Star Rating mentioned as per New ISEER Table-2023-24, defined by Bureau of Energy Efficiency (BEE) , Ministry Of Power.

” Value given in In

#As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior Notice.

AS A PART OF CONTINOUS DEVELOPMENT AND UPGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE/SPECIFICATION MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
