  • GTKU

FTKU35

5 Star Standard Series

  • Technology :

    Inverter

  • Star Rating :

  • Capacity kW :

    3.52

  • Compressor Warranty :

    10 Yrs

  • PCB Warranty :

    5 Yrs

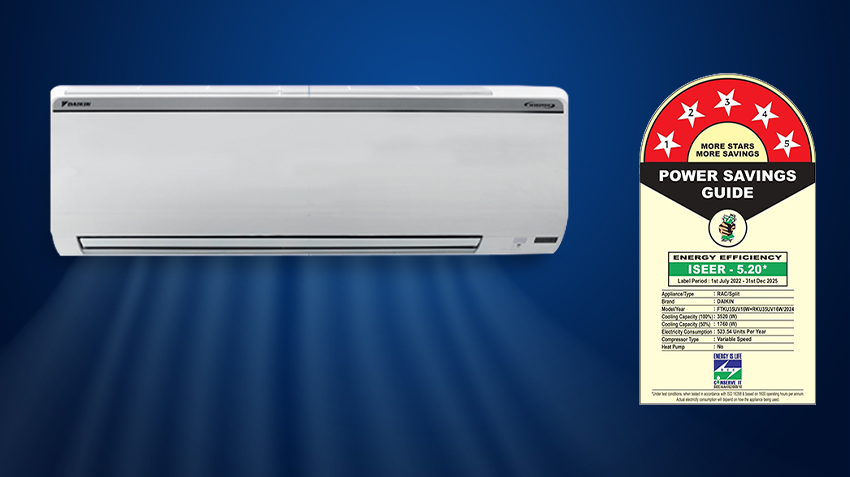

Keep comfortable and enjoy clean air with Daikin's FTKU35 - 5 Star Standard series AC. Experience cooling even in extreme ambient temperatures up to 54°C. Additionally, its Dew Clean Technology and Hepta Sense ensure high durability and improved performance of your AC.

Salient Features

10 Years Warranty on Compressor

Enjoy long term assurance with 10 Years of peaceful cooling at your house. Daikin provides you tension-free comfort for a decade with a warranty on your air conditioning system's compressor.

5 Years Warranty On PCB

Want additional peace of mind? With Daikin's 5 year warranty on PCB, make your experience more peaceful alongside extra assurance on the maintenance cost and enjoy smooth cooling of your AC in your home.

Coanda Airflow

Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling even in corners of the room by streaming cool air upwards along the ceiling, avoiding furniture or obstructions.

Cools upto 54º C

Unlike most regular air conditioners that are designed to deliver cooling at 35°C, Daikin air conditioners are designed to perform at extreme ambient conditions as high as 54°C. This makes them the ideal choice for dry and tropical countries.

Dew Clean Technology#

Daikin’s Dew Clean Technology auto-cleans the indoor heat exchanger unit, getting rid of bacteria, moulds and other unwanted particles. It ensures odour-free, fresh, consistent airflow at all times.

#Dew Clean Technology is available in cooling only mode.

DNNS Self Heal

Every Daikin Room AC’s Indoor Unit (U-bend side) is coated with advanced anti-corrosive coating active agent DNNS (Di-Nonyl Nephthalene Sulfonic Acid). The coating has Self Healing properties that activates upon chipping, scratches due to environmental or chemical pollution.

Hepta Sense

Daikin Swing Inverter ACs has 7 Sensors located on IDU and ODU. Each of these sensors has role to play in the working of Air conditioner that improves overall performance, provide comfort to users and help to increase durability and life of the AC.

ISEER 5.2

Say goodbye to sweaty heat with Daikin's AC. With a high ISEER rating of 5.2, this air conditioner is extremely energy-efficient and ideal for long usage. Enjoy optimal air-conditioning experience without any worry.

Patented Swing Compressor

Daikin Air conditioners come with a Patented Swing Compressor which decreases friction and vibration. This helps in a smooth rotation of the swing compressor which provides a quiet and efficient operation.

PM 2.5 Filter

Live life pollutants free with Daikin's highly efficient air conditioner. The PM2.5 air conditioner filter traps fine air particles 2.5 microns in width, giving you a clean and healthy indoor air.

Power Chill Operation

Cool down your home at a fast rate. Daikin's Power Chill operation cools down 20% faster as compared to the normal mode. It ensures your room temperature drops rapidly for immediate relief from the hot temperature outside.

Self-Diagnosis

The machine auto detects the error and shows the related code on the remote screen. Now you can easily self diagnose the error and report it to your Daikin authorised service centre for a quick resolution.

Stabilizer Inside

No need to worry about voltage fluctuation. Daikin's Stabilizer Inside operation regulates voltage across a wide range of fluctuation (130V~285V) and helps ensuring smooth operations during voltage fluctuations.

Triple Display

The Triple Display feature shows 3 key optimum running features on your display panel: the percentage of power consumed at any given time, the set temperature of your room, and error codes, if any. This ensures the well-being of your system.

Explore All Features

Specification

Model nameIndoor unit (IDU) FTKU35UV16W
Outdoor unit (ODU)RKU35UV16W
Star Rating* 5 Star
Rated Power supplyPhase /Frequency/Voltage1φ 50Hz 230V
 (220-240V)
Power Supply Intake Outdoor unit
Rated Cooling Capacity Full/Half (min.～max.)kW3.52/1.76 (1.09~4)
Rated Cooling Capacity Full/Half (min.～max.)Btu/h12000/6000(3720~13650)
Rated Power Consumption Full/Half (min.～max.)CoolingW940/290 (196~1150)
Rated Annual Power ConsumptionkWh523.54
Rated ISEERWh/Wh5.2
Voltage Range (Stabilizer Inside)CoolingV130~285
Operating CurrentCoolingA4.3

Indoor unit (IDU)

Panel Colour White
IDU Dimension (HxWxD)mm298 x 800 x 229
Package Dimension (HxWxD)375 x 895 x 325
IDU Net Weight (Gross Weight)kg9.5 (12.5)
Airflow RateCoolingFeet3/min (cfm)420
m3/min (cmm)11.9
Operation Sound H/MH/M/ML/L/SLCoolingdBA42/40/37/34/30/27

Outdoor unit (ODU)

ODU Dimension (HxWxD)mm550 x 675 x 284
Package Dimension (HxWxD)620x 825 x 410
ODU Net Weight (Gross Weight)kg24(30)
Compressor Type Swing Compressor
Refrigerant R-32
Breaker sizeA15
Piping lengthCharge-Lessm10
Max Length15
Max. Height12
Piping ConnectionGas / Liquidmm (Inch)Φ9.5 / φ6.4(3/8”/1/4”)
Operating Ambient Temperature RangeCooling (Min-Max)°C DB20~54
Measurement conditions:
cooling

Cooling capacity is based on: indoor temp. 27°C DB, 19°C WB; outdoor temp. 35°C DB, piping length 5 m.

sound icon

Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

*Star Rating mentioned above is as per norms defined by Bureau of Energy Efficiency, Ministry of Power, Government of India.

” Value given in Inch. #As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior notice.

AS A PART OF CONTINOUS DEVELOPMENT AND UPGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE/SPECIFICATION MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
