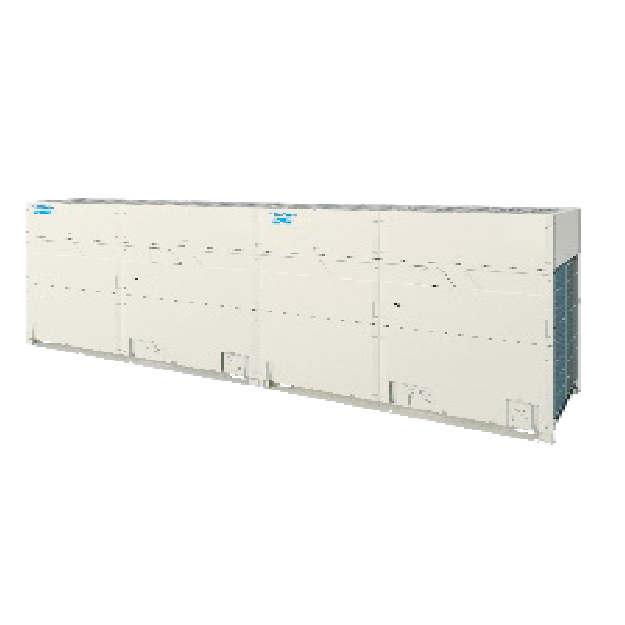

VRV Alpha
Next Generation VRV system
The series offers a wide range of advanced features designed to benefit all stakeholders in the air‑conditioning ecosystem, including building owners, consultants, installers, and facility management teams. It supports both cooling and heating through a single VRV system, ensuring greater flexibility and convenience. With its newly engineered casing, the series delivers a single module of up to 26 class while achieving significant energy savings through enhanced technology. Its performance has been optimized in all aspects by incorporating innovative concepts, cutting‑edge technologies, and a comprehensive set of functions that improve design flexibility, simplify installation, and enhance overall reliability.
Product Category
- VRV Air Conditioner VRV Alpha
Model
VRV Alpha
Salient Features

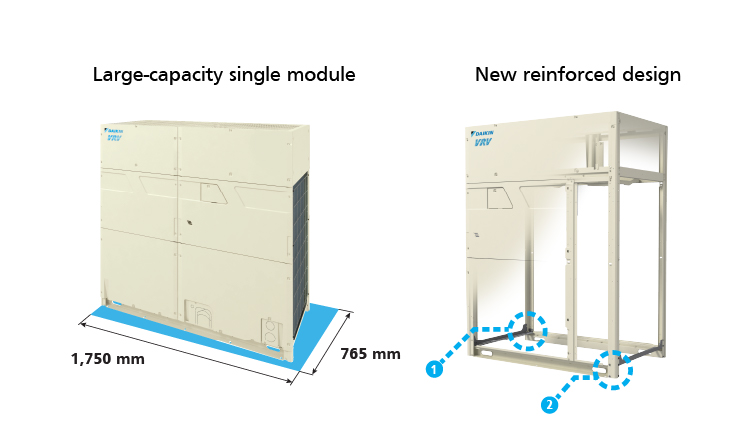

New Casing

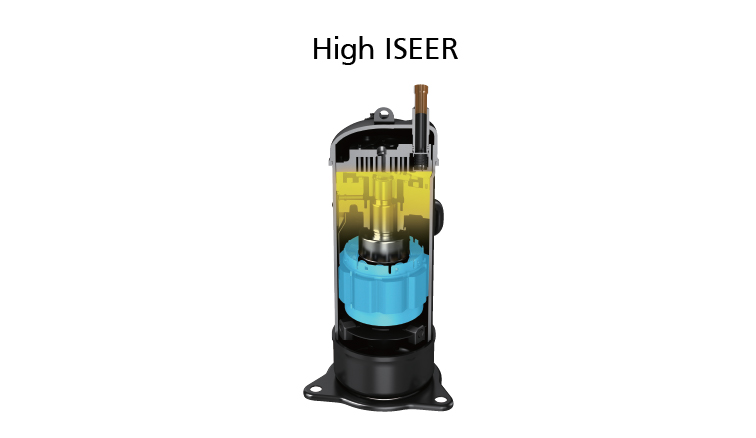

Energy Savings

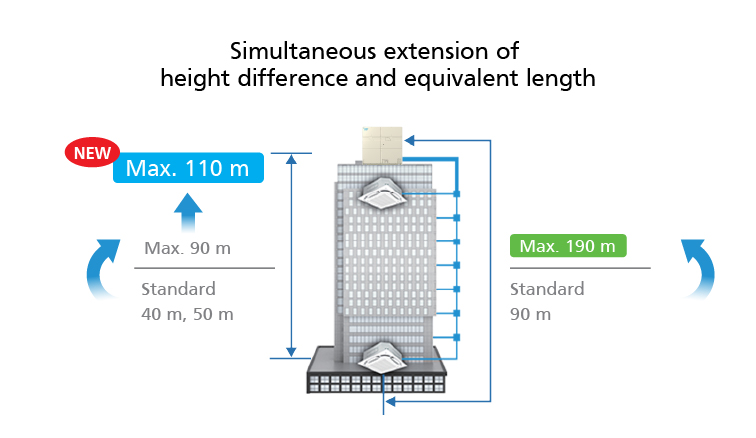

Design Flexibility

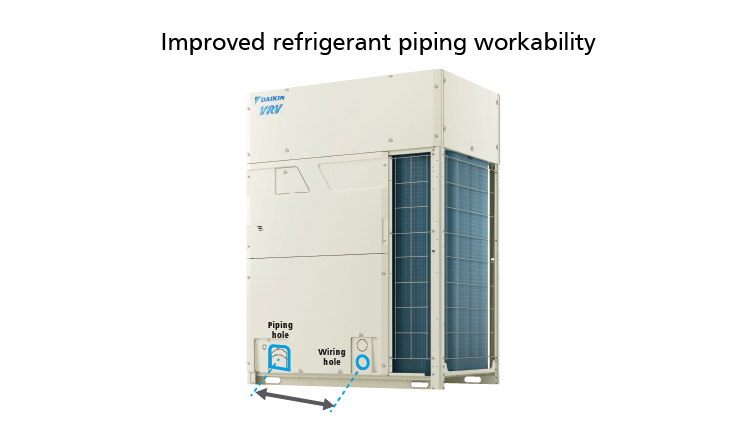

Easy Installation

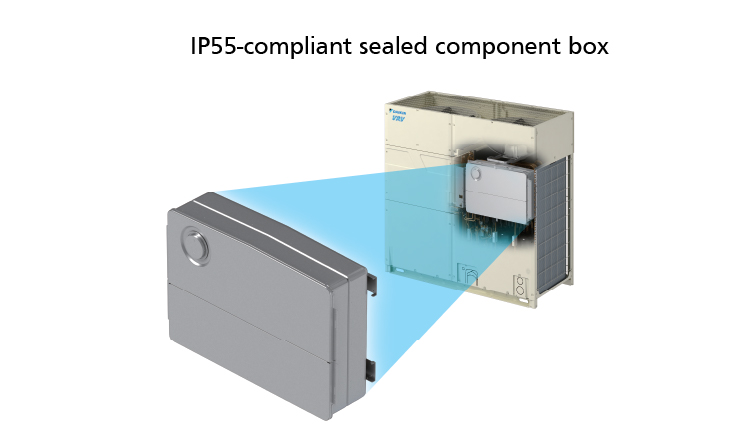

Reliability & Comfort

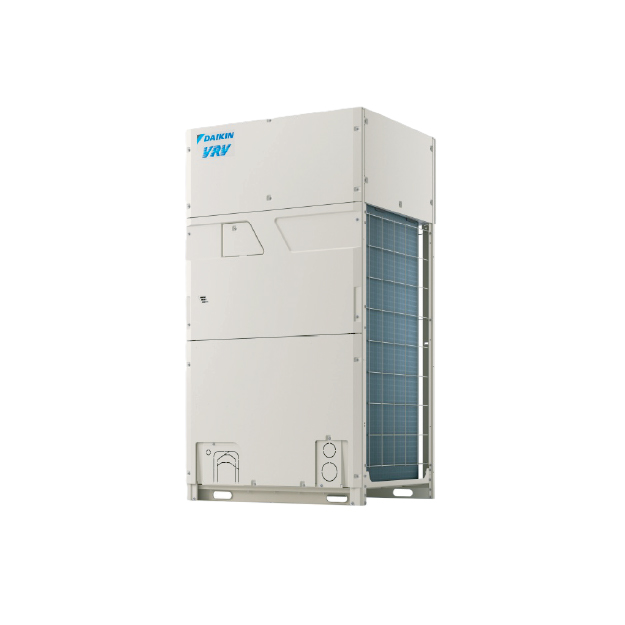

Specification
(Cooling only)
 |  | |||||||
| MODEL | RXQ6BRY16 | RXQ8BRY16 | RXQ10BRY16 | RXQ12BRY16 | RXQ14BRY16 | RXQ16BRY16 | ||
| Combination units | - | - | - | - | - | - | ||
| Power supply | 3 Phase, 50 Hz, 380–415 V | |||||||
| Cooling capacity | Btu/h | 54,600 | 76,400 | 95,500 | 114,000 | 136,000 | 154,000 | |
| kW | 16 | 22.4 | 28 | 33.5 | 40 | 45 | ||
| ISEER | w/w | 10.90 | 9.66 | 11.44 | 10.81 | 8.67 | 8.47 | |
| Capacity control | % | 11–100 | 11–100 | 13–100 | 12–100 | 11–100 | 9–100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||
| No. of compressor | 1 | |||||||
| Airflow rate | m3/min | 158 | 158 | 174 | 185 | 237 | 266 | |
| Dimensions (H×W×D) | mm | 1660 × 930 × 765 | 1660 × 1240 × 765 | |||||
| Machine weight | kg | 195 | 195 | 202 | 202 | 240 | 262 | |
| Sound level | dB(A) | 56 | 56 | 59 | 59 | 61 | 63 | |
| Operation range | Cooling | °CDB | 10 ~ 55 | |||||
| Refrigerant | Type | R410A | ||||||
| Charge | kg | 7.1 | 7.2 | 7.4 | 7.5 | 9.6 | 10.0 | |
| Piping connections | Liquid | mm | ø 9.5 | ø 12.7 | ||||
| Gas | mm | ø 19.1 | ø 22.2 | ø 28.6 | ||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

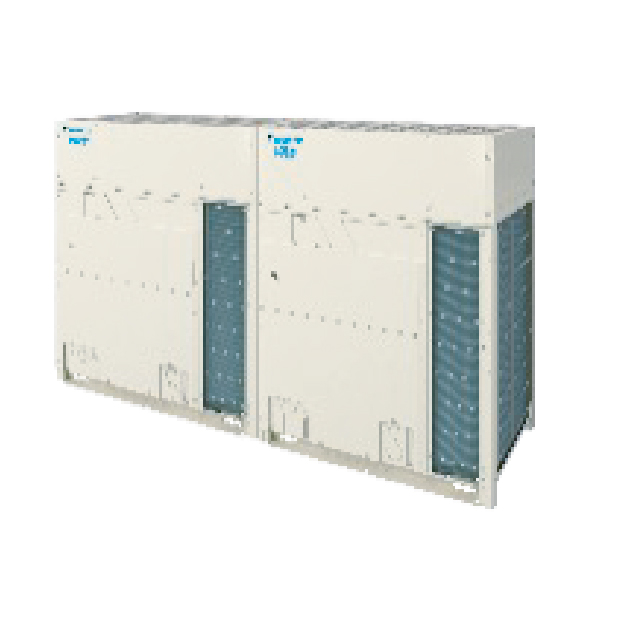

(Cooling only)
 |  |  | ||||||||
| MODEL | RXQ18BRY16 | RXQ20BRY16 | RXQ22BRY16 | RXQ24BRY16 | RXQ26BRY16 | RXQ28BRY16 | RXQ30BRY16 | RXQ32BRY16 | ||
| Combination units | - | - | - | - | - | RXQ14BRY16 RXQ14BRY16 | RXQ12BRY16 RXQ18BRY16 | RXQ14BRY16 RXQ18BRY16 | ||
| Power supply | 3 Phase, 50Hz, 380–415 V | |||||||||
| Cooling capacity | Btu/h | 171000 | 191000 | 210000 | 229000 | 249000 | 273000 | 285000 | 307000 | |
| kW | 50 | 56 | 61.5 | 67 | 73 | 80.0 | 83.5 | 90 | ||
| ISEER | w/w | 8.56 | 8.38 | 9.09 | 8.88 | 8.42 | 8.67 | 9.69 | 8.57 | |
| Capacity control | % | 8–100 | 8–100 | 8–100 | 8–100 | 8–100 | 5–100 | 5–100 | 5–100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressor | 1 | 1+1 | ||||||||
| Airflow rate | m3/min | 266 | 306 | 430 | 430 | 411 | 237+237 | 185+266 | 237+266 | |
| Dimensions (H×W×D) | mm | 1660 × 1240 × 765 | 1660 × 1750 × 765 | (1660 × 1240 × 765) + (1660 × 1240 × 765) | (1660 × 930 × 765) + (1660 × 1240 × 765) | (1660 × 1240 × 765) + (1660 × 1240 × 765) | ||||
| Machine weight | kg | 262 | 285 | 324 | 324 | 350 | 240+240 | 202+262 | 240+262 | |
| Sound level | dB(A) | 64 | 66 | 67 | 68 | 68 | 65 | 65 | 66 | |
| Operation range | Cooling | °CDB | 10 ~ 55 | |||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 10.1 | 11.7 | 11.7 | 11.7 | 11.7 | 9.6 + 9.6 | 7.5 + 10.1 | 9.6 + 10.1 | |
| Piping connections | Liquid | mm | ø 15.9 | ø 19.1 | ||||||
| Gas | mm | ø 28.6 | ø 34.9 | ø 34.9 | ||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

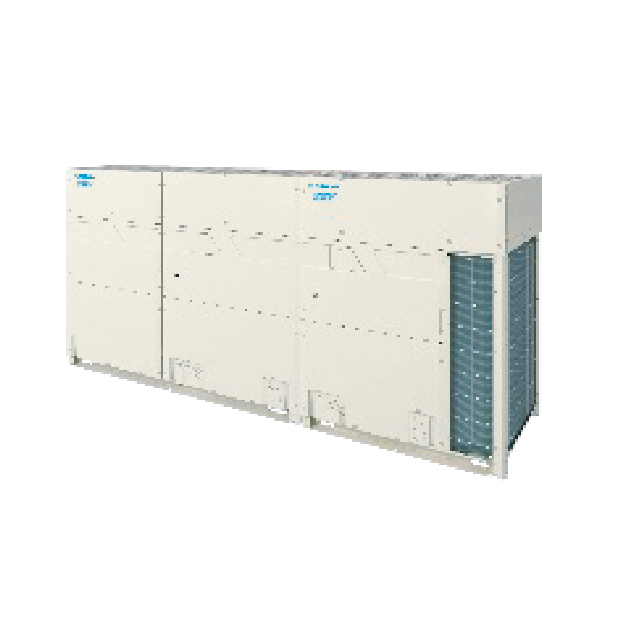

(Cooling only)
 |  | |||||||
| MODEL | RXQ34BRY16 | RXQ36BRY16 | RXQ38BRY16 | RXQ40BRY16 | RXQ42BRY16 | RXQ44BRY16 | ||
| Combination units | RXQ16BRY16 RXQ18BRY16 | RXQ18BRY16 RXQ18BRY16 | RXQ14BRY16 RXQ24BRY16 | RXQ14BRY16 RXQ26BRY16 | RXQ18BRY16 RXQ24BRY16 | RXQ18BRY16 RXQ26BRY16 | ||
| Power supply | 3 Phase, 50Hz, 380–415 V | |||||||
| Cooling capacity | Btu/h | 324000 | 341000 | 365000 | 386000 | 399000 | 420000 | |
| kW | 95 | 100 | 107 | 113 | 117 | 123 | ||
| ISEER | w/w | 8.50 | 8.34 | 8.77 | 8.45 | 8.73 | 8.63 | |
| Capacity control | % | 4–100 | 4–100 | 4–100 | 4–100 | 4–100 | 4–100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||
| No. of compressor | 1 + 1 | |||||||
| Airflow rate | m3/min | 266 + 266 | 266 + 266 | 237 + 430 | 237 + 411 | 266 + 430 | 266 + 411 | |
| Dimensions (H×W×D) | mm | (1660 × 1240 × 765) + (1660 × 1240 × 765) | (1660 × 1240 × 765) + (1660 × 1240 × 765) | (1660 × 1240 × 765) + (1660 × 1750 × 765) | ||||
| Machine weight | kg | 262 + 262 | 262 + 262 | 240 + 324 | 240 + 350 | 262 + 324 | 262 + 350 | |
| Sound level | dB(A) | 67 | 68 | 69 | 69 | 70 | 70 | |
| Operation range | Cooling | °CDB | 10 ~ 55 | |||||
| Refrigerant | Type | R410A | ||||||
| Charge | kg | 10.1 + 10.1 | 10.1 + 10.1 | 9.6 + 11.7 | 9.6 + 11.7 | 10.1 + 11.7 | 10.1 + 11.7 | |
| Piping connections | Liquid | mm | ø 19.1 | |||||
| Gas | mm | ø 41.3 | ||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

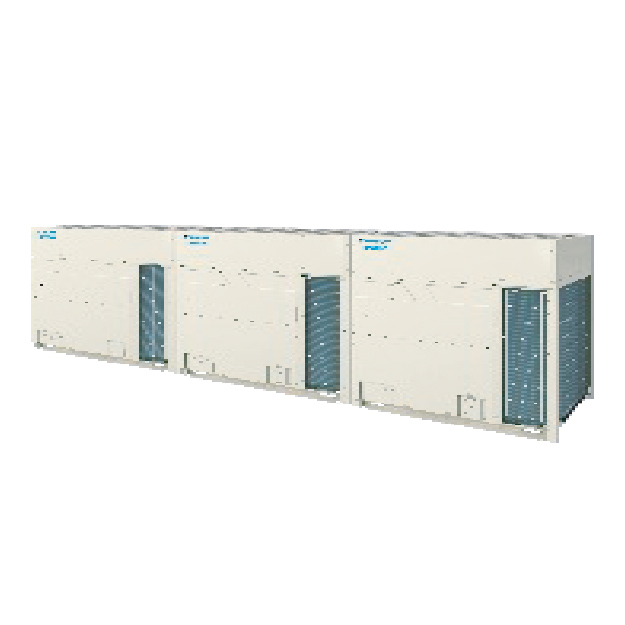

(Cooling only)
 |  | |||||||||
| MODEL | RXQ46BRY16 | RXQ48BRY16 | RXQ50BRY16 | RXQ52BRY16 | RXQ54BRY16 | RXQ56BRY16 | RXQ58BRY16 | RXQ60BRY16 | ||
| Combination units | RXQ22BRY16 RXQ24BRY16 | RXQ24BRY16 RXQ24BRY16 | RXQ24BRY16 RXQ26BRY16 | RXQ26BRY16 RXQ26BRY16 | RXQ18BRY16 RXQ18BRY16 RXQ18BRY16 | RXQ12BRY16 RXQ18BRY16 RXQ26BRY16 | RXQ14BRY16 RXQ18BRY16 RXQ26BRY16 | RXQ18BRY16 RXQ18BRY16 RXQ24BRY16 | ||
| Power supply | 3 Phase, 50Hz, 380–415 V | |||||||||
| Cooling capacity | Btu/h | 440000 | 457000 | 478000 | 498000 | 512000 | 532000 | 556000 | 570000 | |
| kW | 129 | 134 | 140 | 146 | 150 | 156 | 163 | 167 | ||
| ISEER | w/w | 8.39 | 8.71 | 8.63 | 8.41 | 8.45 | 9.27 | 8.55 | 8.38 | |
| Capacity control | % | 4–100 | 4–100 | 4–100 | 4–100 | 3–100 | 3–100 | 3–100 | 2–100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressor | 1 + 1 | 1 + 1 + 1 | ||||||||
| Airflow rate | m3/min | 430 + 430 | 430 + 430 | 430 + 411 | 411 + 411 | 266 + 266 + 266 | 185 + 266 + 411 | 237 + 266 + 411 | 266 + 266 + 430 | |
| Dimensions (H×W×D) | mm | (1660 × 1750 × 765) + (1660 × 1750 × 765) | (1660 × 1750 × 765) + (1660 × 1750 × 765) | (1660 × 1750 × 765) + (1660 × 1750 × 765) | (1660 × 1240 × 765) × 3 | (1660 × 930 × 765) + (1660 × 1240 × 765) + (1660 × 1750 × 765) | (1660 × 1240 × 765) + (1660 × 1240 × 765) + (1660 × 1750 × 765) | (1660 × 1240 × 765) + (1660 × 1240 × 765) + (1660 × 1750 × 765) | ||
| Machine weight | kg | 324 + 324 | 324 + 324 | 324 + 350 | 350 + 350 | 262 + 262 + 262 | 202 + 262 + 350 | 240 + 262 + 350 | 262 + 262 + 324 | |
| Sound level | dB(A) | 71 | 72 | 72 | 72 | 69 | 70 | 71 | 71 | |
| Operation range | Cooling | °CDB | 10 ~ 55 | |||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 11.7 + 11.7 | 11.7 + 11.7 | 11.7 + 11.7 | 11.7 + 11.7 | 10.1 + 10.1 + 10.1 | 7.5 + 10.1 + 11.7 | 9.6 + 10.1 + 11.7 | 10.1 + 10.1 + 11.7 | |
| Piping connections | Liquid | mm | ø 19.1 | |||||||
| Gas | mm | ø 41.3 | ||||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.
(Cooling only)
 | |||||||||
| MODEL | RXQ62BRY16 | RXQ64BRY16 | RXQ66BRY16 | RXQ68BRY16 | RXQ70BRY16 | RXQ72BRY16 | |||
| Combination units | RXQ18BRY16 RXQ18BRY16 RXQ26BRY16 | RXQ12BRY16 RXQ26BRY16 RXQ26BRY16 | RXQ18BRY16 RXQ24BRY16 RXQ24BRY16 | RXQ18BRY16 RXQ24BRY16 RXQ26BRY16 | RXQ18BRY16 RXQ26BRY16 RXQ26BRY16 | RXQ24BRY16 RXQ24BRY16 RXQ24BRY16 | |||
| Power supply | 3 Phase, 50Hz, 380–415 V | ||||||||
| Cooling capacity | Btu/h | 590000 | 611000 | 628000 | 648000 | 669000 | 684000 | ||
| kW | 173 | 179 | 184 | 190 | 196 | 201 | |||
| ISEER | w/w | 8.61 | 9.22 | 8.36 | 8.58 | 8.52 | 8.36 | ||
| Capacity control | % | 2–100 | 2–100 | 2–100 | 2–100 | 2–100 | 3–100 | ||
| Compressor | Type | Hermetically Sealed Scroll Type | |||||||
| No. of compressor | 1 + 1 + 1 | ||||||||
| Airflow rate | m3/min | 266 + 266 + 430 | 185 + 411 + 411 | 266 + 430 + 430 | 266 + 430 + 411 | 261 + 411 + 411 | 430 + 430 + 430 | ||
| Dimensions (H×W×D) | mm | (1660×1240×765) + (1660×1240×765) + (1660×1750×765) | (1660×930×765) + (1660×1750×765) + (1660×1750×765) | (1660×1240×765) + (1660×1750×765) + (1660×1750×765) | (1660×1240×765) + (1660×1750×765) + (1660×1750×765) | (1660×1240×765) + (1660×1750×765) + (1660×1750×765) | (1660×1750×765) + (1660×1750×765) + (1660×1750×765) | ||
| Machine weight | kg | 262 + 262 + 350 | 202 + 350 + 350 | 262 + 324 + 324 | 262 + 324 + 350 | 262 + 350 + 350 | 324 + 324 + 324 | ||
| Sound level | dB(A) | 71 | 72 | 72 | 72 | 72 | 73 | ||
| Operation range | Cooling | °CDB | 10 ~ 55 | ||||||
| Refrigerant | Type | R410A | |||||||
| Charge | kg | 10.1 + 10.1 + 11.7 | 7.5 + 11.7 + 11.7 | 10.1 + 11.7 + 11.7 | 10.1 + 11.7 + 11.7 | 10.1 + 11.7 + 11.7 | 11.7 + 11.7 + 11.7 | ||
| Piping connections | Liquid | mm | ø 19.1 | ||||||
| Gas | mm | ø 41.3 | |||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.
(Cooling only)
 | |||||
| MODEL | RXQ74BRY16 | RXQ76BRY16 | RXQ78BRY16 | ||
| Combination units | RXQ24BRY16 RXQ24BRY16 RXQ26BRY16 | RXQ24BRY16 RXQ26BRY16 RXQ26BRY16 | RXQ26BRY16 RXQ26BRY16 RXQ26BRY16 | ||
| Power supply | 3 Phase, 50Hz, 380–415 V | ||||
| Cooling capacity | Btu/h | 706000 | 727000 | 747000 | |
| kW | 207 | 213 | 219 | ||
| ISEER | w/w | 8.56 | 8.55 | 8.40 | |
| Capacity control | % | 3–100 | 3–100 | 3–100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | |||
| No. of compressor | 1 + 1 + 1 | ||||
| Airflow rate | m3/min | 430 + 430 + 411 | 430 + 411 + 411 | 411 + 411 + 411 | |
| Dimensions (H×W×D) | mm | (1660×1750×765) + (1660×1750×765) + (1660×1750×765) | (1660×1750×765) + (1660×1750×765) + (1660×1750×765) | (1660×1750×765) + (1660×1750×765) + (1660×1750×765) | |
| Machine weight | kg | 324 + 324 + 350 | 324 + 350 + 350 | 350 + 350 + 350 | |
| Sound level | dB(A) | 73 | 73 | 73 | |
| Operation range | Cooling | °CDB | 10 ~ 55 | ||
| Refrigerant | Type | R410A | |||
| Charge | kg | 11.7 + 11.7 + 11.7 | 11.7 + 11.7 + 11.7 | 11.7 + 11.7 + 11.7 | |
| Piping connections | Liquid | mm | ø 22.2 | ||
| Gas | mm | ø 41.3 | |||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

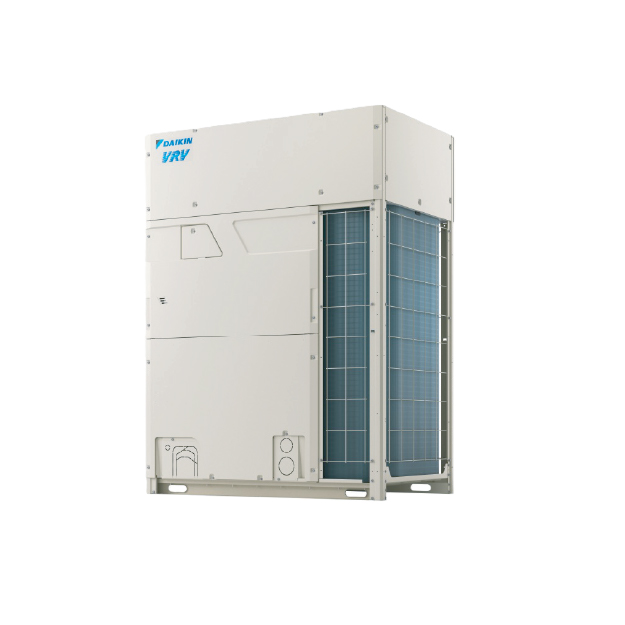

(Heat Pump)
 |  | |||||||
| MODEL | RXYQ6BRY16 | RXYQ8BRY16 | RXYQ10BRY16 | RXYQ12BRY16 | RXYQ14BRY16 | RXYQ16BRY16 | ||
| Combination units | — | — | — | — | — | — | ||
| Power supply | 3 PHASE, 50Hz, 380-415 V | |||||||
| Cooling capacity | Btu/h | 54600 | 76400 | 95500 | 114000 | 136000 | 154000 | |
| kW | 16 | 22.4 | 28 | 33.5 | 40 | 45 | ||
| Heating capacity | Btu/h | 61400 | 85300 | 107000 | 128000 | 154000 | 171000 | |
| kW | 18.0 | 25.0 | 31.5 | 37.5 | 45.0 | 50.0 | ||
| ISEER | w/w | 10.90 | 9.66 | 11.40 | 10.81 | 8.67 | 8.47 | |
| Capacity control | % | 11-100 | 11-100 | 13-100 | 12-100 | 7-100 | 6-100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||
| No. of compressors | 1 | 1+1 | ||||||
| Airflow rate | m3/min | 155 | 155 | 169 | 181 | 260 | 266 | |
| Dimensions (H×W×D) | mm | 1660 × 930 × 765 | 1660 × 1240 × 765 | |||||
| Machine weight | kg | 210 | 210 | 220 | 220 | 305 | 305 | |
| Sound level (C/H) | dBA | 56/56 | 56/56 | 57/58 | 60/62 | 61/61 | 61/61 | |
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||
| Heating | °CWB | -25 ~ 15.5 | ||||||
| Refrigerant | Type | R410A | ||||||
| Charge | kg | 6.8 | 6.9 | 7.1 | 7.2 | 9.7 | 9.9 | |
| Piping connections | Liquid | mm | Ø 9.5 | Ø 12.7 | ||||
| Gas | mm | Ø 19.1 | Ø 22.2 | Ø 28.6 | ||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

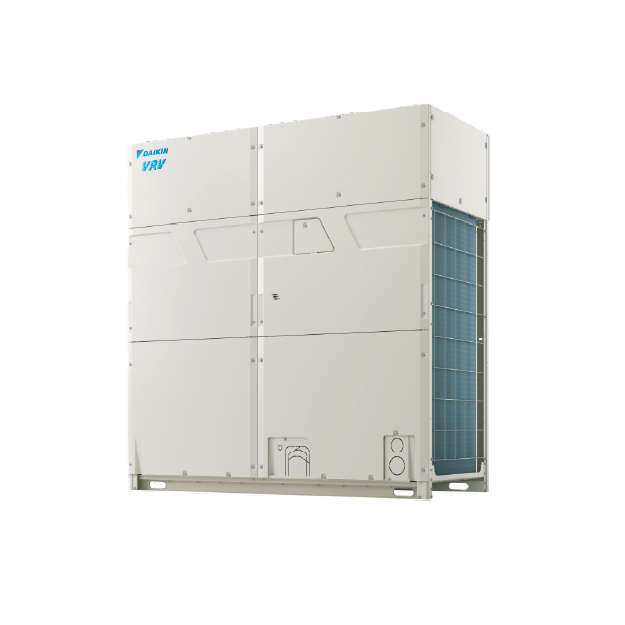

(Heat Pump)
 |  | |||||||
| MODEL | RXYQ18BRY16 | RXYQ20BRY16 | RXYQ22BRY16 | RXYQ24BRY16 | RXYQ26BRY16 | RXYQ28BRY16 | ||
| Combination units | — | — | — | — | — | RXYQ12BRY16 RXYQ16BRY16 - | ||
| Power supply | 3 PHASE, 50Hz, 380-415 V | |||||||
| Cooling capacity | Btu/h | 171000 | 191000 | 210000 | 229000 | 249000 | 268000 | |
| kW | 50 | 56 | 61.5 | 67 | 73 | 78.5 | ||
| Heating capacity | Btu/h | 191000 | 215000 | 235000 | 249000 | 249000 | 299000 | |
| kW | 56.0 | 63.0 | 69.0 | 73.0 | 73 | 87.5 | ||
| ISEER | w/w | 8.56 | 8.38 | 9.09 | 8.88 | 7.77 | 9.32 | |
| Capacity control | % | 5-100 | 5-100 | 6-100 | 6-100 | 6-100 | 4-100 | |
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||
| No. of compressors | 1+1 | 2+1 | ||||||
| Airflow rate | m3/min | 258 | 306 | 430 | 430 | 430 | 181+266 | |
| Dimensions (H×W×D) | mm | 1660 × 1240 × 765 | 1660 × 1750 × 765 | (1660 × 1240 × 765) + (1660 × 930 × 765) | ||||
| Machine weight | kg | 335 | 335 | 380 | 380 | 380 | 220 + 305 | |
| Sound level (C/H) | dBA | 61/61 | 65/66 | 67/67 | 68/68 | 68/68 | 64/65 | |
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||
| Heating | °CWB | -25 ~ 15.5 | ||||||
| Refrigerant | Type | R410A | ||||||
| Charge | kg | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 7.2 + 9.9 | |
| Piping connections | Liquid | mm | Ø 15.9 | Ø 19.1 | ||||
| Gas | mm | Ø 28.6 | Ø 34.9 | |||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

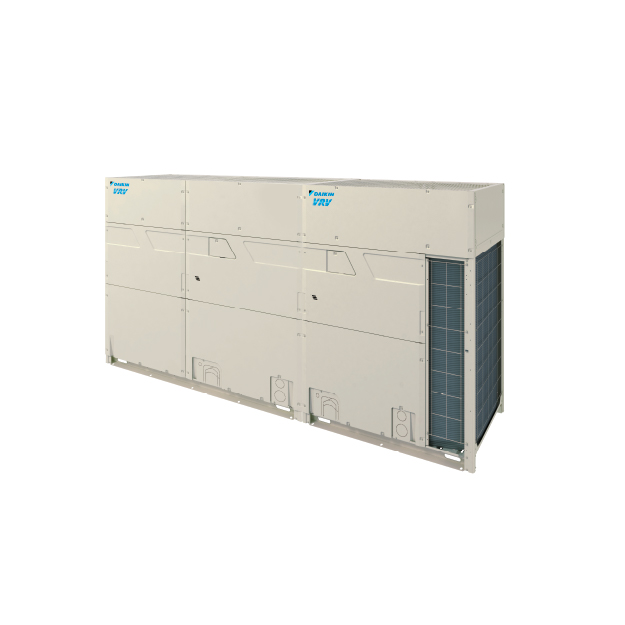

(Heat Pump)
 | ||||||||||
| MODEL | RXYQ30BRY16 | RXYQ32BRY16 | RXYQ34BRY16 | RXYQ36BRY16 | RXYQ38BRY16 | RXYQ40BRY16 | ||||
| Combination units | RXYQ12BRY16 RXYQ18BRY16 - | RXYQ12BRY16 RXYQ20BRY16 - | RXYQ12BRY16 RXYQ22BRY16 - | RXYQ12BRY16 RXYQ24BRY16 - | RXYQ12BRY16 RXYQ26BRY16 - | RXYQ20BRY16 RXYQ20BRY16 - | ||||
| Power supply | 3 PHASE, 50Hz, 380-415 V | |||||||||
| Cooling capacity | Btu/h | 285000 | 305000 | 324000 | 341000 | 362000 | 382000 | |||
| kW | 83.5 | 89.5 | 95 | 100 | 106 | 112 | ||||
| Heating capacity | Btu/h | 319000 | 341000 | 362000 | 375000 | 375000 | 430000 | |||
| kW | 93.5 | 100 | 106 | 110 | 110 | 126 | ||||
| ISEER | w/w | 9.33 | 9.15 | 9.96 | 9.84 | 9.29 | 8.38 | |||
| Capacity control | % | 3 - 100 | 3 - 100 | 3 - 100 | 4 - 100 | 4 - 100 | 3 - 100 | |||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressors | 2+1 | 2+2 | ||||||||
| Airflow rate | m3/min | 181+258 | 181+306 | 430+181 | 181+430 | 181+430 | 306+306 | |||
| Dimensions (H×W×D) | mm | (1660 × 1240 × 765) + (1660 × 930 × 765) | (1660 × 1750 × 765) + (1660 × 930 × 765) | (1660 × 1240 × 765) + (1660 × 1240 × 765) | ||||||
| Machine weight | kg | 220 + 335 | 220 + 335 | 220 + 380 | 220 + 380 | 335 + 335 | 335 + 335 | |||
| Sound level (C/H) | dBA | 64/65 | 66/67 | 68/68 | 69/69 | 69/69 | 68/69 | |||
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||||
| Heating | °CWB | -25 ~ 15.5 | ||||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 7.2+11.7 | 7.2+11.7 | 7.2+11.7 | 7.2+11.7 | 7.2+11.7 | 11.7+11.7 | |||
| Piping connections | Liquid | mm | Ø 19.1 | |||||||
| Gas | mm | Ø 34.9 | Ø 41.3 | |||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.
(Heat Pump)
 | ||||||||||
| MODEL | RXYQ42BRY16 | RXYQ44BRY16 | RXYQ46BRY16 | RXYQ48BRY16 | RXYQ50BRY16 | RXYQ52BRY16 | ||||
| Combination units | RXYQ16BRY16 RXYQ26BRY16 - | RXYQ20BRY16 RXYQ24BRY16 - | RXYQ20BRY16 RXYQ26BRY16 - | RXYQ22BRY16 RXYQ26BRY16 - | RXYQ24BRY16 RXYQ26BRY16 - | RXYQ26BRY16 RXYQ26BRY16 - | ||||
| Power supply | 3 PHASE, 50Hz, 380-415 V | |||||||||
| Cooling capacity | Btu/h | 403000 | 420000 | 440000 | 457000 | 478000 | 498000 | |||
| kW | 118 | 123 | 129 | 134 | 140 | 146 | ||||
| Heating capacity | Btu/h | 420000 | 464000 | 464000 | 485000 | 498000 | 498000 | |||
| kW | 123 | 136.0 | 136.0 | 142 | 146 | 146 | ||||
| ISEER | w/w | 8.12 | 8.63 | 8.01 | 8.31 | 8.26 | 7.76 | |||
| Capacity control | % | 3 - 100 | 2 - 100 | 2 - 100 | 3 - 100 | 3 - 100 | 3 - 100 | |||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressors | 2+2 | |||||||||
| Airflow rate | m3/min | 266+430 | 306+430 | 430+306 | 430+430 | 430+430 | 430+430 | |||
| Dimensions (H×W×D) | mm | (1660 × 1240 × 765) + (1660 × 1750 × 765) | (1660 × 1750 × 765) + (1660 × 1750 × 765) | |||||||
| Machine weight | kg | 305 + 380 | 335 + 380 | 380 + 335 | 380 + 380 | 380 + 380 | 380 + 380 | |||
| Sound level (C/H) | dBA | 69/69 | 71/71 | 70/70 | 71/71 | 71/71 | 71/71 | |||
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||||
| Heating | °CWB | -25 ~ 15.5 | ||||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 11.7 + 9.9 | 11.7 + 11.7 | 11.7 + 11.7 | 11.7 + 11.7 | 11.7 + 11.7 | 11.7 + 11.7 | |||
| Piping connections | Liquid | mm | Ø 19.1 | |||||||
| Gas | mm | Ø 41.3 | ||||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.

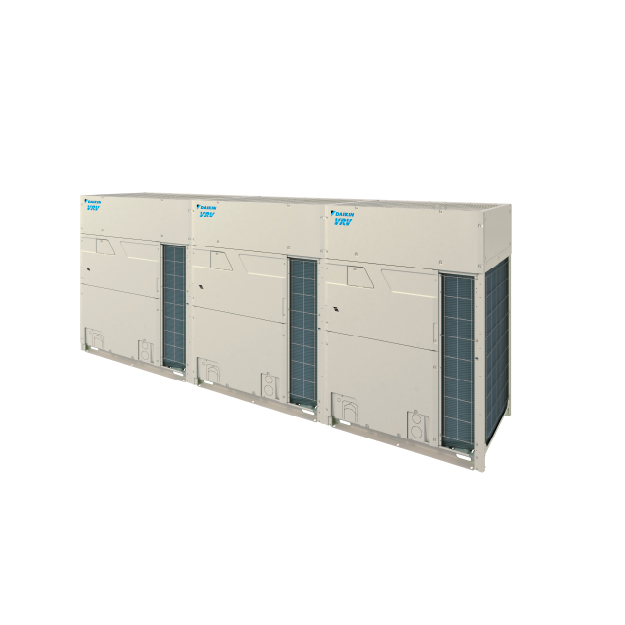

(Heat Pump)
 | ||||||||||
| MODEL | RXYQ54BRY16 | RXYQ56BRY16 | RXYQ58BRY16 | RXYQ60BRY16 | RXYQ62BRY16 | RXYQ64BRY16 | ||||
| Combination units | RXYQ12BRY16 RXYQ26BRY16 | RXYQ12BRY16 RXYQ24BRY16 | RXYQ12BRY16 RXYQ26BRY16 | RXYQ12BRY16 RXYQ24BRY16 RXYQ24BRY16 | RXYQ12BRY16 RXYQ24BRY16 RXYQ26BRY16 | RXYQ12BRY16 RXYQ26BRY16 RXYQ26BRY16 | ||||
| Power supply | 3-phase, 380–415 V, 50 Hz | |||||||||
| Cooling capacity | Btu/h | 510,000 | 532,000 | 553,000 | 570,000 | 590,000 | 611,000 | |||
| kW | 151 | 156 | 162 | 167 | 173 | 179 | ||||
| Heating capacity | Btu/h | 546,000 | 590,000 | 590,000 | 624,000 | 624,000 | 624,000 | |||
| kW | 160 | 167 | 173 | 183 | 183 | 183 | ||||
| ISEER | w/w | 9.00 | 9.36 | 8.99 | 9.52 | 9.15 | 8.78 | |||
| Capacity control | % | 2~100 | 2~100 | 2~100 | 2~100 | 3~100 | 3~100 | |||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressor | 1 + 2 + 2 | |||||||||
| Airflow rate | m3/min | 181+266+430 | 169+430+306 | 181+430+306 | 181+430+430 | 181+430+430 | 181+430+430 | |||
| Dimensions (H×W×D) | mm | (1660×930×765)+(1660×1240×765)+(1660×1750×765) | (1660×930×765)+(1660×1750×765)+(1660×1750×765) | |||||||
| Machine weight | kg | 220+305+380 | 220+335+380 | 220+335+380 | 220+380+380 | 220+380+380 | 220+380+380 | |||
| Sound level (C/H) | dB(A) | 69/70 | 70/71 | 70/71 | 71/72 | 71/72 | 71/72 | |||
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 7.2+9.9+11.7 | 7.1+11.7+11.7 | 7.2+11.7+11.7 | 7.2+11.7+11.7 | 7.2+11.7+11.7 | 7.2+11.7+11.7 | |||
| Piping connections | Liquid | mm | Ø 19.1 | |||||||
| Gas | mm | Ø 41.3 | ||||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.
(Heat Pump)
 | ||||||||||
| MODEL | RXYQ66BRY16 | RXYQ68BRY16 | RXYQ70BRY16 | RXYQ72BRY16 | RXYQ74BRY16 | RXYQ76BRY16 | RXYQ78BRY16 | |||
| Combination units | RXYQ20BRY16 RXYQ20BRY16 RXYQ26BRY16 | RXYQ16BRY16 RXYQ26BRY16 RXYQ26BRY16 | RXYQ20BRY16 RXYQ24BRY16 RXYQ26BRY16 | RXYQ20BRY16 RXYQ26BRY16 RXYQ26BRY16 | RXYQ22BRY16 RXYQ26BRY16 RXYQ26BRY16 | RXYQ24BRY16 RXYQ26BRY16 RXYQ26BRY16 | RXYQ26BRY16 RXYQ26BRY16 RXYQ26BRY16 | |||
| Power supply | 3 PHASE, 50Hz , 380-415 V | |||||||||
| Cooling capacity | Btu/h | 631,000 | 652,000 | 669,000 | 689,000 | 706,000 | 727,000 | 747,000 | ||
| kW | 185 | 191 | 196 | 202 | 207 | 213 | 219 | |||
| Heating capacity | Btu/h | 679,000 | 669,000 | 713,000 | 713,000 | 734,000 | 747,000 | 747,000 | ||
| kW | 199 | 196 | 209 | 209 | 215 | 219 | 219 | |||
| ISEER | w/w | 8.09 | 8.04 | 8.26 | 7.88 | 8.07 | 8.08 | 7.75 | ||
| Capacity control | % | 2~100 | 2~100 | 2~100 | 2~100 | 2~100 | 2~100 | 2~100 | ||
| Compressor | Type | Hermetically Sealed Scroll Type | ||||||||
| No. of compressor | 2 + 2 + 2 | |||||||||
| Airflow rate | m3/min | 306+306+430 | 266+430+430 | 306+430+430 | 306+430+430 | 430+430+430 | 430+430+430 | 430+430+430 | ||
| Dimensions (H×W×D) | mm | (1660×1240×765)+(1660×1240×765)+(1660×1750×765) | (1660×1240×765)+(1660×1750×765)+(1660×1750×765) | (1660×1750×765)+(1660×1750×765)+(1660×1750×765) | ||||||
| Machine weight | kg | 335+335+380 | 305+380+380 | 335+380+380 | 335+380+380 | 380+380+380 | 380+380+380 | 380+380+380 | ||
| Sound level (C/H) | dB(A) | 71/72 | 71/71 | 71/71 | 71/71 | 69/70 | 69/70 | 69/70 | ||
| Operation range | Cooling | °CDB | -5 ~ 55 | |||||||
| Refrigerant | Type | R410A | ||||||||
| Charge | kg | 11.7+11.7+11.7 | 9.9+11.7+11.7 | 11.7+11.7+11.7 | 11.7+11.7+11.7 | 11.7+11.7+11.7 | 11.7+11.7+11.7 | 11.7+11.7+11.7 | ||
| Piping connections | Liquid | mm | Ø 19.1 | Ø 22.2 | ||||||
| Gas | mm | Ø 41.3 | ||||||||
Note :
Specifications are based on tde following conditions::
- Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping lengtd: 7.5 m, Level difference: 0
- Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of tde unit at a height of 1.5 m. During actual operation, tdese values are normally somewhat higher as a result of ambient conditions.
- (ES) for anticorrosion treated outdoor unit.
