FTL30
3 Star Celebration Series
-
Technology :
Non Inverter
-
Star Rating :
-
Capacity kW
2.93
-
Compressor Warranty :
5 Yrs

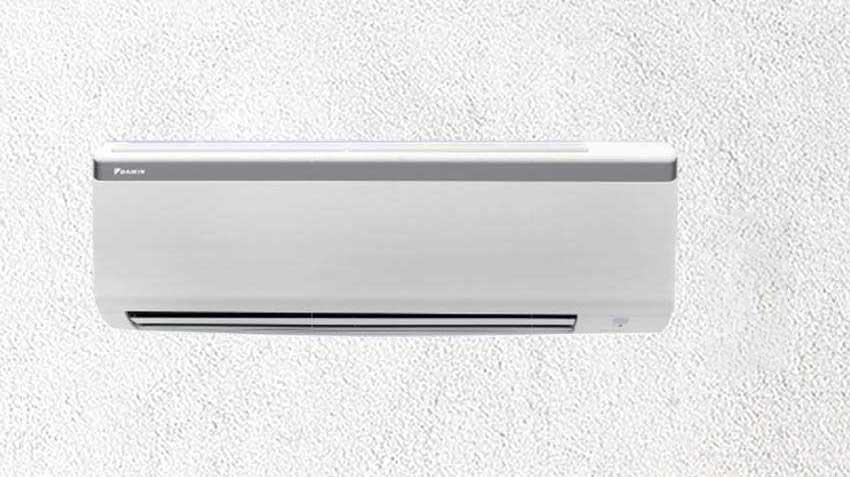

Experience the powerful air conditioning with Daikin's FTL30. Crafted to cater to your cooling needs while optimizing energy consumption. Choose FTL30 for the perfect blend of sophistication and efficiency.
Salient Features
1 Year Comprehensive Warranty on Machine
5 Years Warranty on Compressor
Coanda Airflow
DNNS Self Heal
Dry Mode Function
Econo Mode
PM 2.5 Filter
Power Chill Operation
Power-Airflow Dual Flaps
Self-Diagnosis
Smell Proof Operation
Stabilizer Free
Specification
Model name | Indoor unit (IDU) | FTL30UV16V1 | |
---|---|---|---|
Outdoor unit (ODU) | RL30UV16V1 | ||
Star Rating* | 3 Star | ||
Rated Power supply | Phase /Frequency/Voltage | 1φ 50Hz 230V | |
(220-240V) | |||
Power Supply Intake | Outdoor unit | ||
Rated Cooling Capacity | kW | 2.93 | |
Rated Cooling Capacity | Btu/h | 10000 | |
Rated Power Consumption | Cooling | W | 742 |
Rated Annual Power Consumption | kWh | 574.39 | |
Rated ISEER | Wh/Wh | 3.95 | |
Voltage Range | Cooling | V | 160~264 |
Operating Current | Cooling | A | 3.4 |
Indoor unit (IDU)
Panel Colour | White | ||
---|---|---|---|
IDU Dimension (HxWxD) | mm | 298 x 885 x 229 | |
Package Dimension (HxWxD) | 375 x 980 x 325 | ||
IDU Net Weight (Gross Weight) | kg | 11 (14) | |
Airflow Rate | Cooling | Feet3/min (cfm) | 579 |
m3/min (cmm) | 16.4 | ||
Operation Sound H/MH/M/ML/L/SL | Cooling | dBA | 46/40/34 |
Outdoor unit (ODU)
ODU Dimension (HxWxD) | mm | 550 x 675 x 284 | |
---|---|---|---|
Package Dimension (HxWxD) | 620x 825 x 400 | ||
ODU Net Weight (Gross Weight) | kg | 26.5 (32.5) | |
Compressor Type | Rotary Compressor | ||
Refrigerant | R-32 | ||
Breaker size | A | 15 | |
Piping length | Charge-Less | m | 10 |
Max Length | 20 | ||
Max. Height | 15 | ||
Piping Connection | Gas / Liquid | mm (Inch) | Φ9.5 / φ6.4(3/8”/1/4”) |
Operating Ambient Temperature Range | Cooling (Min-Max) | °C DB | 19.4~50 |
